Series & Model

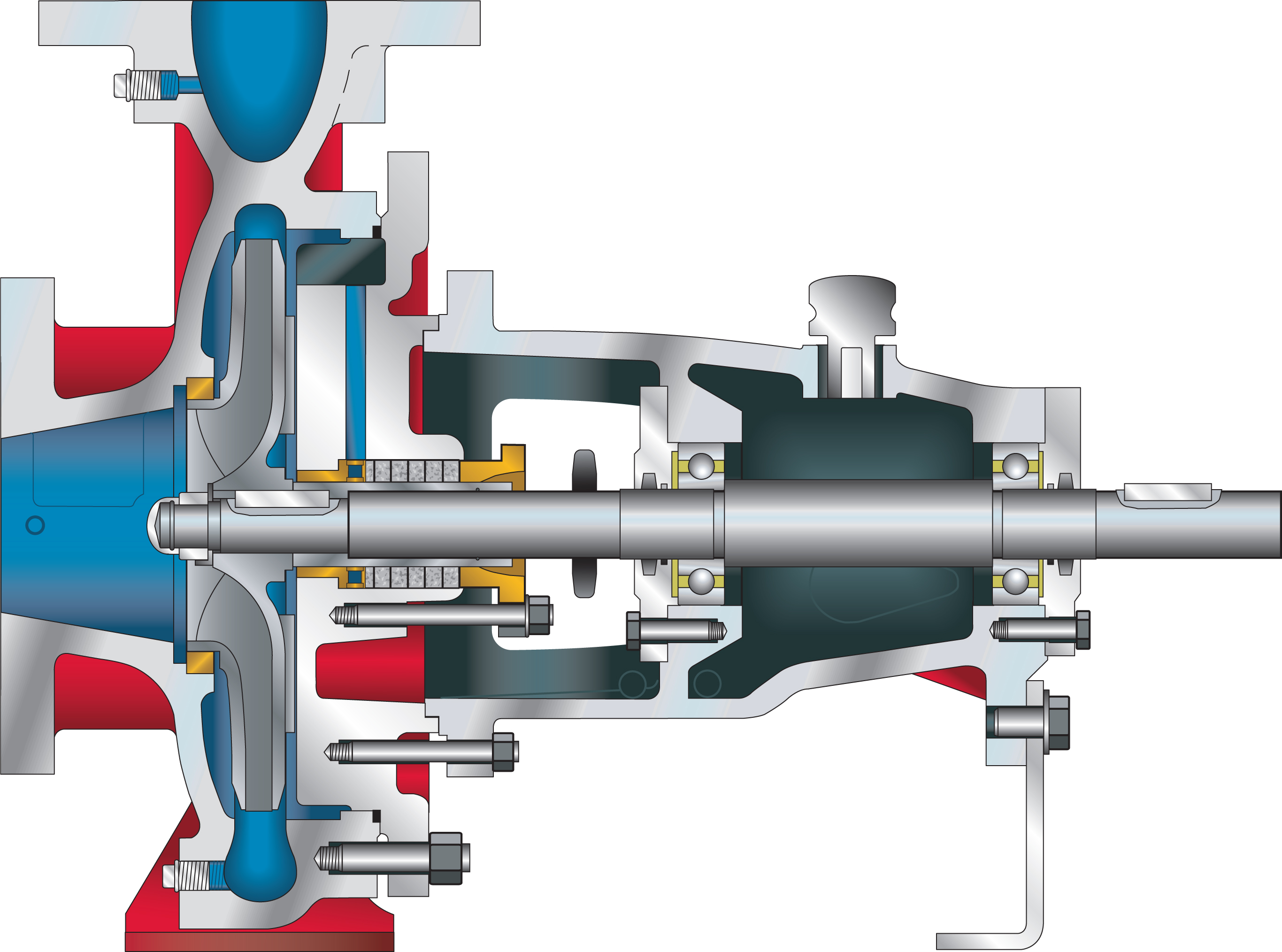

Product Picture
General purpose end suction pumps are used in fire protection services every day. The FP-REF series end suction products feature back pull out impellers, centerline discharges, casted integral feet on all casings with heavy casing thickness, impellers with back pump out vanes and oversized shafts to provide the end user with a superior, reliable product. These products have been tested to fully meet UL & FM specifications.
Performance Charachteristics Performance Curves
Capacities to: 1,500 GPM

Heads to: 212 PSI

Speed ranges: 3600 to 1500 RPM
Features & Benefits Markets
Feature & Benefit Models fully meet UL & FM specifications.
Back pull-out to reduce maintenance down time.
Internal packing flush.
Available standard in Cast Iron/Bronze fitted or other alloy for application versatility.
Replaceable wearing components include casing wear rings to maintain peak efficiency.
Enclosed, francis impeller design, dynamic balancing and renewable wear rings reduce losses increasing performance and pump life.
125 lb. ANSI flange suction/discharge connections with centerline discharge and cast integral foot on casing for support. Suction and discharge flanges are casted to 250 psi dimensions. Case working pressures for all FP-REF models is 250 psi.
Oil lubricated power frame for cooler bearing operation. All FP-REF pump models feature bearings with a minimum 100,000 hour design life.
Fire Protection
