Army TACOM, Engineered Process Pumps

Series & Model

Product Picture

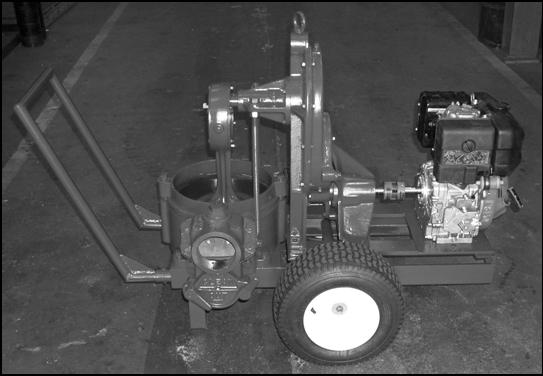

100 GPM Wheeled Bulk Transfer Water Pump
4" NOVO AD

NSN: 4320-01-506-9538
A-A-52315
Size B

The 100 GPM Water Pump is a diesel driven, self priming, positive displacement pump designed to pump water in a variety of environmental conditions. It is a rugged, durable product specifically designed to meet the needs of our military.

Performance Charachteristics

Capacities to: 100 GPM (23 m^3/hr)

Heads to: 50 Feet (15 m)

Temperatures to: 32 F to 125 F (0 C to 52C)

Speed ranges: 1760 RPM

Features & Benefits

Markets

Heavy duty 490 Series fluid end constructed of all cast iron construction.

No mechanical seal which enables the unit to run dry indefinitely.

Discharge clean-out to remove debris from inside of pump body without removing discharge piping.

Completely meets A-A-52315 specifications and requirements.

Complete pumping assembly fully provisioned.

Rugged, wheeled, steel base that can be transported by a one person.

Inline suction and discharge connections to allow for easy use in the field.

Completely packaged and preserved for long term storage.

Lombardini 15LD315, recoil-start, diesel engine driven.
